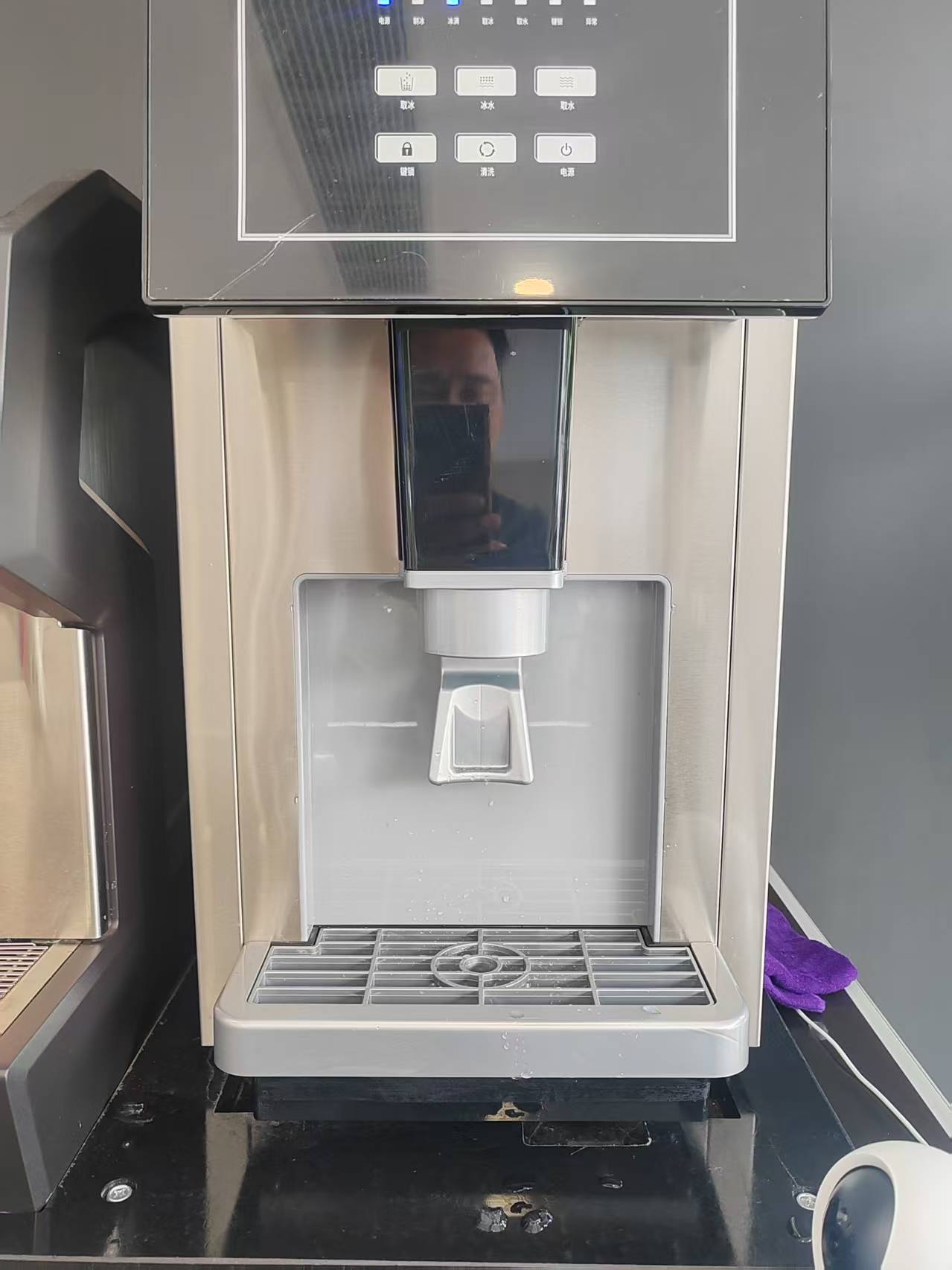

Ice Maker in Coffee Robots
Ice Maker in Coffee Robots: The Cryogenic Foundation of Premium Beverages
The ice maker serves as the thermal management core of coffee robots, ensuring three critical dimensions meet specialty coffee standards: ice crystal quality, temperature stability, and supply continuity. It solves compatibility issues between traditional ice systems and automated workflows.
Core Technical Specifications
| Parameter | Standard Value | Industry-Leading Spec |
|---|---|---|
| Ice Type | Solid cube (18x18mm) | Programmable shapes (sphere/diamond) |
| Cycle Output | 1.2kg/12min | 2.4kg/8min (twin-compressor) |
| Ice Temperature | -6°C to -8°C | -10°C (deep-chill tech) |
| Energy Efficiency | 1.8kW·h/kg | 0.95kW·h/kg (inverter system) |
| Storage Capacity | 8kg | 15kg (vertical 3D storage) |
Core Functions Deep Dive
Ice Crystal Structure Optimization
Technology:
Bidirectional laminar-flow condensation eliminates air bubbles (light transmittance >90%)
Nano-coated molds improve release speed by 40%
Coffee Application:
Slow-melt properties (<15% melt in 20min) prevent espresso dilution
Low surface adhesion avoids clumping during robotic handling
Dynamic Demand Response
Smart Prediction System:
Peak Hours
Off-Peak
Order Analytics
Predict Ice Demand
Pre-initiate Ice Production
Enter Sleep Mode
Maintain 80% Storage
Energy Savings: Reduces standby consumption by 62%
Sterile Ice Production Chain
Stage Technology Microbiological Standard Water Input Dual RO + UV Sterilization Total Colonies ≤10 CFU/mL Ice Chamber Automated Ozone Sterilization (3x/day) E. coli: Undetectable Storage Nitrogen Atmosphere Zero Mold Growth Robotic Arm Ice Retrieval
Precision Positioning:
3D grid-coded storage (positioning accuracy ±1mm)
Infrared ice-level monitoring (<5 ice cubes error)
Specialized End-Effector:
Vacuum suction + flexible vibration plate (99.8% retrieval success)
Anti-frost air jets prevent arm condensation
Performance Benchmark Data
| Metric | Commercial Ice Maker | Coffee Robot Unit | Improvement |
|---|---|---|---|
| Temperature Stability | ±3.5°C | ±0.8°C | 77% |
| Continuous Output | 45 cups/hour | 120 cups/hour | 167% |
| Crystal Uniformity (CV) | ≥18% | ≤5% | 72% |
| Mean Time Between Failure | 400 hours | 2,500 hours | 525% |
Technology Evolution
Flavor-Infusion Technology:
Coffee extract microcapsules embedded in ice (release flavor when chewed)
Cross-Module Thermal Management:
Waste-cold recovery for syrup module chilling (30% energy savings)
AI-Driven Ice Geometry:
Beverage-matched ice types:
Spheres (whiskey): slowest melt
Crushed diamonds (cold brew): maximum surface area
Commercial Value Formula
Daily Savings = (Manual Ice Labor × Hourly Wage) + (Traditional Machine Losses) - (Energy Cost)
≈ [0.5h × $15] + [$120] - [$8] = $119.5/day *Based on 300 cups/day operation*
Industry Pain Points Solved
▸ Unstable ice quality → Laminar-flow condensation + deep-chill solidification
▸ Supply disruption risk → Redundant twin-compressor design
▸ Microbial contamination → Closed-loop sterile production
▸ Automation incompatibility → Grid-mapped storage + specialized end-effector
